Free Download Canon EOS M PDF User Manual, Instructions, User Guide, Canon EOS M Owner's Manual.

Canon EOS M is Canon's first Mirrorless Compact System Camera (CSC), it Equipped with a 18 MP APS-C CMOS sensor, new EOS M lens mount, easy-to-use 3-inch touch-screen and DIGIC 5 Image Processor. Other features include Hybrid AF autofocus system, Full HD Movie mode with Movie Servo AF for continuous focus tracking of moving subjects, ISO 100-25600 and Scene Intelligent Auto mode. The EOS M leverages these key technologies to deliver high-quality movie and still images at your fingertips.

The EOS M Digital Camera features Canon's high-resolution 18.0 Megapixel APS-C Hybrid CMOS  sensor provides a shallow depth of field, incredible low-light image quality and a wide dynamic range to capture rich gradation and detail.

The DIGIC 5 Image Processor works with the camera's CMOS sensor to deliver images with incredible detail in more situations, without the need for artificial light sources. The EOS M Digital Camera features a versatile ISO range of ISO 100-6400 (expandable to 12800 in H mode) for video recording and ISO 100-12800 (expandable to 25600 in H mode) for still image shooting. The EOS M Digital Camera, with the DIGIC 5 Image Processor's remarkable noise-reduction technology, delivers outstanding performance in low light for incredible video and photos.

The EOS M Digital Camera uses a hybrid AF system to deliver incredibly speedy and accurate focus when shooting photos and videos- allowing you to record any moment with confidence. Its CMOS sensor has center-mounted pixels that are used for phase-difference AF. Phase difference AF is incredibly fast for general distance determination, while contrast AF is incredibly accurate, no matter the location of the focus point. By capitalizing on the strengths of phase-difference and contrast AF systems, the EOS M Digital Camera achieves precise AF, fast.

EOS M lets you shoot 1920x1080 30p (NTSC) / 25p (PAL) Full HD video with manual control of focus and exposure. The Movie Servo AF allows continuous autofocus tracking of moving subjects while recording video. When shooting video with one of Canon’s new STM lenses, Movie Servo AF takes advantage of the lens’ stepping motor for smooth and quiet continuous AF. Additionally, the Video Snapshot mode for an easy way to record and create a fun highlight reel that can be easily shared. Video Snapshot mode combines a series of short video clips into a single file, all in-camera.

EOS M features a bright, 1,040,000 dots high-resolution 3.0-inch Clear View LCD II Touch screen, this screen is touch-sensitive and delivers intuitive touch panel operation. Two finger touch gestures (multi-touch) can be used for zooming or changing images, menu and quick control settings can be accessed, and focus point and shutter release can be activated with the touch of a fingertip.The additional benefit of Touch AF makes it fast and easy to focus on any subject, by simply touching it on the screen.

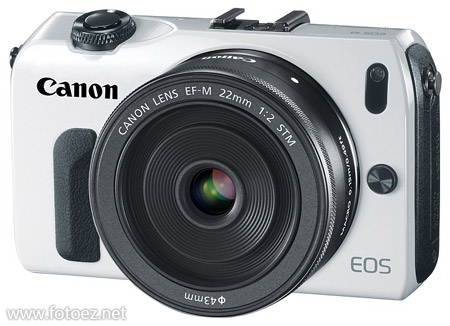

Canon EOS M

The EOS M features an enhanced Scene Intelligent Auto mode that incorporates a number of Canon technologies to deliver the best possible exposure. Joining Picture Style Auto, Automatic Lighting Optimizer, Automatic White Balance, Autofocus, and Automatic Exposure, Scene Intelligent Auto mode analyzes the image, accounting for faces, colors, brightness, moving objects, contrast, even whether the camera is handheld or on a tripod, and then chooses the exposure and enhancements that bring out the best in any scene or situation.

EOS M camera's Handheld Night Scene and High Dynamic Range mode are assistive functions that allow all levels of photographers to take advantage of digital advancements to improve their shooting results. The Handheld Night Scene mode captures nightscapes with bright highlights and detailed dark areas, delivering results previously impossible without the use of a tripod. The HDR Backlight Control mode ensures that backlit subjects are not recorded too dark.

To enhance its already admirable high ISO shooting capabilities, the EOS M features an intelligent Multi Shot Noise Reduction (MSNR) tool provides outstanding noise reduction while preserving fine detail in photos at high ISO speeds. With MSNR activated, the camera takes four consecutive shots of the same image, then merges and aligns them, reducing noise and blur.

The EOS M also offers seven Creative Filters to enhance your images, including Grainy Black and White, Soft Focus, Fish-eye Effect, Toy Camera Effect, Art Bold Effect and Water Painting Effect, which makes your photo look like an oil painting. The filters can be applied before the shot is captured, with the result previewed in Live View, allowing you to experiment with different effects before selecting the perfect treatment for your final image.

The EOS M Digital Camera features a new style EF-M lens mount, any of Canon's EF and EF-S lenses can be used with the EOS M with the optional Mount Adapter EF-EOS M. When the adapter is used, the image quality of the lens is preserved, with no light loss or change to image stabilization. Using the adapter allows the camera to be fully integrated into the EOS ecosystem of lenses, adding creative options and versatility to this powerful camera.

Canon EOS M Mirrorless Digital Camera Key Features:

  • 18 Megapixel APS-C CMOS sensor
  • DIGIC 5 image processing engine
  • 5 fps continuous shooting
  • ISO 100-6400 (expandable to 12800 in H mode) for video recording, ISO 100-12800 (expandable to 25600 in H mode) for still image shooting
  • Hybrid AF System
  • 3-inch 1,040k dot 3:2 Clear View LCD II Touch screen features multi-touch operation and Touch AF
  • Full-HD movies with manual controls and continuous AF
  • Video Snapshot
  • Scene Intelligent Auto mode
  • Handheld Night Scene mode
  • HDR Backlight Control mode
  • Multi Shot Noise Reduction
  • Creative Filters
  • Compatible with the full line of Canon EF and EF-S lenses (Optional Mount Adapter EF-EOS M is required)
  • Compatible with all Canon Speedlite accessories including the new Speedlite 600EX and Speedlite Transmitter ST-E3-RT
  • Compatible with Canon's GPS Receiver GP-E2

Free Download Canon EOS M Operating Instruction Guide / Owner's Manual / User's Manual (PDF format):


Canon EOS M User's Instruction Manual - English

Canon EOS M German User's Instruction Manual - Deutsch

Canon EOS M French User's Instruction Manual - Français

Canon EOS M Spanish User's Instruction Manual - Español

Canon EOS M Portuguese User's Instruction Manual - Português

Canon EOS M Italian User's Instruction Manual - Italiano

Canon EOS M Dutch User's Instruction Manual - Nederlands

Canon EOS M Danish User's Instruction Manual - Dansk

Canon EOS M Finnish User's Instruction Manual - Suomi

Canon EOS M Swedish User's Instruction Manual - Svenska

Canon EOS M Russian User's Instruction Manual - Русский

Canon EOS M Czech User's Instruction Manual - Čeština

Canon EOS M Slovak User's Instruction Manual - Slovensky

Canon EOS M Hungarian User's Instruction Manual - Magyar

Canon EOS M Polish User's Instruction Manual - Polski

Canon EOS M Japanese User's Instruction Manual - 日本語 使用説明書
