Free Download Fujifilm X-Pro1 PDF User Manual, Instructions, User Guide, Fujifilm X-Pro1 Owner's Manual.

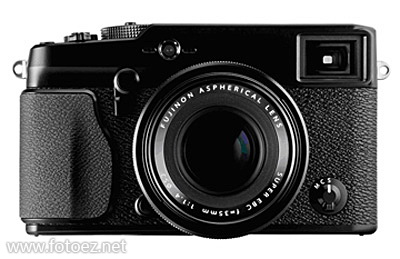

FUJIFILM X-Pro1 is an all-new interchangeable lens camera system, It features a 16 megapixel APS-C X-Trans CMOS sensor, a brand new X lens mount, Hybrid Multi Viewfinder and three prime lenses.
Specifications of Fujifilm X-Pro1 Mirrorless Interchangeable Lens Digital Camera:
Number of effective pixels | 16.3 million pixels |
---|---|
Image sensor | 23.6 mm x 15.6 mm (APS-C) X-Trans CMOS with primary color filter
|
Storage media | SD memory card / SDHC memory card / SDXC (UHS-I) memory card |
File format |
|
Number of recorded pixels | L : (3:2) 4896 x 3264 / (16:9) 4896 x 2760 / (1:1) 3264 x 3264 M : (3:2) 3456 x 2304 / (16:9) 3456 x 1944 / (1:1) 2304 x 2304 S : (3:2) 2496 x 1664 / (16:9) 2496 x 1408 / (1:1) 1664 x 1664<Motion Panorama> L Vertical: 7680 x 2160 Horizontal: 7680 x 1440 M Vertical: 5120 x 2160 Horizontal: 5120 x 1440 |
Lens mount | FUJIFILM X mount |
Compatible Interchangeable lens |
|
Sensitivity | Equivalent to ISO 200 - 6400 (Standard Output Sensitivity) AUTO mode : AUTO (400) / AUTO (800) / AUTO (1600) / AUTO (3200) Extended output sensitivity equivalent ISO 100, 12800 and 25600 |
Exposure control | TTL 256-zones metering, Multi / Spot / Average |
Exposure mode | Programmed AE, Shutter priority AE, Aperture priority AE, Manual exposure |
Exposure compensation | -2.0 EV - +2.0 EV, inclement with 1/3 EV step |
Shutter control | Focal Plane Shutter |
Shutter speed (with mechanical shutter) |
(P mode) 1/4 sec. to 1/4000 sec., (All other modes) 30 sec. to 1/4000 sec. Bulb (max. 60 min.) Time 2 to 30 sec. Synchronized Shutter speed for flash : 1/180 sec or slower * 1/180 sec can be automatically set at some shooting condition on P mode or A mode. |
Continuous shooting | Max 6 / 3 fps selectable |
Auto bracketing | AE Bracketing (±1/3 EV, ±2/3 EV, ±1 EV) Film Simulation Bracketing (Any 3 type of film simulation selectable) Dynamic Range Bracketing (100%, 200%, 400%) ISO sensitivity Bracketing (±1/3 EV, ±2/3 EV, ±1 EV) |
Focus |
|
White balance | Automatic scene recognition Custom, Color temperature selection (K) Preset: Fine, Shade, Fluorescent light (Daylight), Fluorescent light (Warm White), Fluorescent light (Cool White), Incandescent light, underwater |
Film Simulation mode | 10 type (PROVIA/STANDARD, Velvia/VIVID, ASTIA/SOFT, PRO Neg Hi, PRO Neg Std, MONOCHROME, MONOCHROME+Ye FILTER, MONOCHROME+R FILTER, MONOCHROME+G FILTER, SEPIA) |
Dynamic range setting | AUTO (100-400%), 100%, 200%, 400% |
Self-timer | Approx. 10 sec. / 2 sec. Delay |
Flash modes | Hot shoe with TTL contacts; sync terminal Red-eye removal OFF: Auto, Forced Flash, Suppressed Flash, Slow Synchro, Rear-curtain Synchro. Red-eye removal ON: Red-eye Reduction Auto, Red-eye Reduction & Forced Flash, Suppressed Flash, Red-eye Reduction & Slow Synchro, Red-eye Reduction & Rear-curtain Synchro. |
Hot shoe | Yes (dedicated TTL Flash compatible) |
Viewfinder |
|
LCD monitor | 3.0-inch RGBW (White) LCD monitor, approx. 1,230,000 dots, (Approx. 100% coverage) |
Movie recording | 1920 x 1080 pixels, 1280 x 720 pixels (24 frames/sec.) with stereo sound Individual movies can not exceed 29 minutes in length. |
Photography functions | Select custom setting, Motion panorama, Color space, Color (Saturation), sharpness, Dynamic range, Film simulation, Gradation, Auto red-eye removal, Framing guideline, Frame No. memory, Histogram display, Preview depth of focus, Focus check, Electronic level, Multiple exposure, Date input, Fn button setting (RAW, Movie, etc) |
Playback functions | RAW conversing, Image rotate, Red-eye reduction, Photobook assist, Erase selected frames, image search, Multi-frame playback (with micro thumbnail), Slide show, Mark for upload, Protect, Crop, Resize, Panorama, Favorites |
Other functions | PictBridge, Exif Print, Languages selection, Time difference, Quick start mode, Power save mode, Silent mode |
Terminal |
|
Power supply | NP-W126 Li-ion battery (included) |
Dimensions | 139.5 (W) x 81.8 (H) x 42.5 (D) mm / 5.5 (W) x 3.2 (H) x 1.7 (D) in. (Minimum depth: 34.1 mm / 1.3 in.) |
Weight | Approx. 450 g / 15.9 oz. (including battery and memory card) Approx. 400 g / 14.1 oz. (excluding battery and memory card) |
Operating Temperature | 0°C - 40°C |
Operating Humidity | 10 - 80% (no condensation) |
Guide to the number of available frames for battery operation | approx 300 frames |
Starting up period | Approx. 0.5 sec. ( Approx 1.0 sec, when QUICK START mode and Power save mode is set to OFF)
|
Accessories included | Li-ion battery NP-W126 Battery charger BC-W126 Shoulder strap USB cable Body cap Metal strap clip Protective cover Clip attaching tool CD-ROM (Viewer software, RAW File Converter etc.) Owner's manual |
