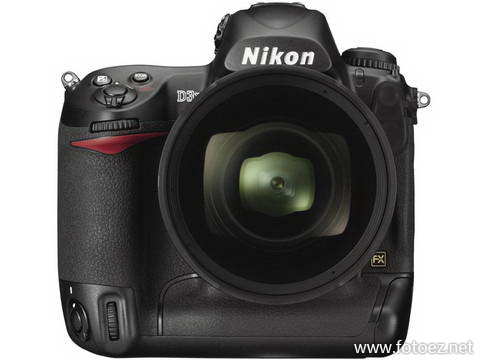

Nikon D3x DSLR, the exciting new camera employs a Nikon FX-format CMOS imaging sensor (35.9 x 24.0 mm) with an imaging area equivalent to 35mm film, and its 24.5 effective megapixels deliver images of striking quality and resolution.
Designed to meet the demands of a growing multitude of serious professionals, such as studio photographers, for whom exquisite detail is a vital part of their work, the D3X achieves resolution comparable to medium-format cameras — with an entirely new level of operating ease. It’s perfect for the broadest range of detailed work, from fashion and product shootings, to weddings, architecture, landscapes and large poster production. And it shares the robust body structure of the D3, for superior mobility and operation in virtually any shooting environment, indoors or out.
Specifications of Nikon D3x
| Type of Camera | Single-lens reflex digital camera |
| Effective Pixels | 24.5 million |
| Image Sensor | Nikon FX format (35.9 x 24.0 mm) CMOS sensor |
| Image Size (Pixels) | FX format (36 x 24): 6,048 x 4,032 [L], 4,544 x 3,024 [M], 3,024 x 2,016 [S] DX format (24 x 16): 3,968 x 2,640 [L], 2,976 x 1,976 [M], 1,984 x 1,320 [S] 5:4 (30 x 24): 5,056 x 4,032 [L], 3,792 x 3,024 [M], 2,528 x 2,016 [S] |
| Sensitivity | ISO 100 to 1,600 in steps of 1/3, or 1 EV, plus LO-0.3, LO-0.7, LO-1, HI-0.3, HI-0.7, HI-1 and HI-2 |
| File Format | NEF (12 or 14-bit lossless compressed, compressed, or uncompressed RAW), TIFF (RGB), JPEG (Baseline-compliant) |
| File System | Compliant DCF 2.0, DPOF, Exif 2.21 and PicBridge |
| Storage Media | CompactFlash™ (CF) Card (Type I/II, compliant with UDMA) and Microdrive™ |
| Shooting Modes | 1) Single frame shooting [S] mode, 2) Continuous low shooting [CL] mode: 1-5 fps, 3) Continuous high shooting [CH] mode: 5 fps (5-7 fps with DX format), 4) Liveview [LV] mode, 5) Self-timer mode, 6) Mirror-up mode |
| White Balance | Auto (TTL white balance with main image sensor and 1,005-pixel RGB sensor); Seven manual modes can be preset with fine-tuning; color temperature setting; white balance bracketing: 2 to 9 exposures in increments of 1, 2 or 3 |
| LCD Monitor Size | 3-in |
| LCD Monitor | 3.0", 920,000-dot low-temperature polysilicon TFT LCD, allows up to 170-degree wide viewing angle |
| Playback Function | 1) Full frame, 2) Thumbnail, 3) Zoom, 4) Slideshow, 5) Histogram indication, 6) Shooting data, 7) Highlight point display, 8) Auto image rotation, 9)Image comment |
| Delete Function | 1) Card format, 2) All frames delete, 3) Selected frames delete |
| I/O Terminal | NTSC or PAL (selectable); simultaneous playback from both the video output and on the LCD monitor available, HDMI Type A connector |
| Interface | USB 2.0 (High-speed): Mass Storage and PTP selectable |
| Picture Angle (in 35mm [135] format equivalent) | Equivalent to angle produced by lens focal length (1.5 times when DX format is selected) |
| ViewFinder Type | Optical |
| Viewfinder | Fixed eye-level pentaprism; built-in diopter adjustment (-3 to +1.0 m-1), Eyepiece shutter provided |
| Eyepoint | 18 mm (-1.0 m-1) |
| Focusing Screen | Type B BriteView Clear Matte VI screen |
| Viewfinder Frame Coverage/Magnification (with 50mm lens at infinity; -1.0 m-1) | Approx. 100%/ Approx. 0.7x |
| Reflex Mirror | Automatic, instant-return type |
| Lens Aperture | Instant-return type, with Depth-of-field preview button |
| Autofocus | TTL phase detection, 51 focus points (15 cross-sensors) by Nikon Multi-CAM 3500FX autofocus module; Detection range: -1 to +19 EV (ISO 100 at 20°C/68°F); Focal-plane contrast [in Liveview (Tripod) mode] |
| Focus Modes | 1) Single-servo AF (AF-S), 2) Continuous-servo AF (AF-C), 3) Focus tracking automatically activated according to subject status, 4) Manual focus (M) with electronic rangefinder can be selected from 51 focus area |
| Focus Lock | Focus can be locked by pressing shutter-release button halfway (Single-servo AF) or by pressing AE-L/AF-L button |
| Exposure Metering System | 1) 3D-Color Matrix Metering II (type G and D lenses); Color Matrix Metering II (other CPU lenses, Non-CPU lenses require manual input of lens data) performed by 1,005-segment RGB sensor, 2) Center-weighted: Weight of 75% given to 8, 15 or 20mm circle in center of frame, or weighting based on average of entire frame; 3) Spot: Meters 4mm circle (about 1.5% of frame) centered on active focus area (on center focus area when non-CPU lens is used) |
| Exposure Metering Range (at normal temperature [68°F/20°C], ISO 100 equivalent, f/1.4 lens) | 1) 0 to 20 EV (3D-Color Matrix or center-weighted metering), 2) 2 to 20 EV (Spot metering) |
| Exposure Metering Coupling | CPU and AI (Automatic maximum aperture Indexing) |
| Exposure Control | 1) Programmed Auto [P], 2) Shutter-Priority Auto [S], 3) Aperture-Priority Auto [A], 4) Manual [M] |
| Auto Exposure Lock | Exposure locked at detected value with AE-L/AF-L button |
| Auto Exposure Bracketing | 2 to 9 exposures in increments of 1/3, 1/2, 2/3 or 1 steps to (+-) 1.0 EV |
| Maximum Shutter | 1/8000 |
| Minimum Shutter | 30 |
| Shutter | Electronically controlled vertical-travel focal plane shutter; 30 to 1/8000sec in steps of 1/3, 1/2 or 1 EV plus bulb |
| Sync Contact | X-contact only; flash synchronization at up to 1/250 sec |
| Flash Control | 1) TTL flash control with 1,005-pixel RGB sensor; i-TTL balanced fill-flash and standard i-TTL fill-flash available with SB-900, 800, 600 or 400 2) Auto aperture (AA): Available with SB-900, 800 and CPU lens 3) Non-TTL auto (A): Available with SB-900, 800, 28, 27 or 22s 4) Range-priority manual (GN): Available with SB-900, and 800 |
| Flash Sync Modes | 1) Front-curtain sync, 2) Red-eye reduction, 3) Red-eye reduction with Slow sync, 4) Slow sync, 5) Rear-curtain sync |
| Accessory Shoe | Standard ISO hot-shoe contact with safety lock |
| Sync Terminal | ISO 519 standard terminal, with built-in rubber cap |
| Self-Timer | Electronically controlled timer with duration of 2, 3, 10 or 20 s. |
| Depth of Field Preview Button | Yes |
| Remote Control | Via 10-pin Remote Cord MC-22/30/36 (optional) or Wireless Remote Control WT-4 (optional) |
| GPS | GPS Unit GP-1 or GPS device compliant with NMEA 0183 (Ver. 2.01 and 3.01) interface standard supported with 9-pin D-sub cable (optional) and GPS Cable MC-35 (optional) |
| Supported Languages | Total of 15 languages: Chinese (Simplified and Traditional), Dutch, English, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish |
| Power Requirements | Rechargeable EN-EL4a/EL4 Li-ion Battery, EH-6 AC adapter (optional) |
| Battery Life (on a fully charged battery) | Approx. 4400 shots |
| Tripod Socket | 1/4 in. (ISO 1222) |
| Dimensions | Approx. 159.5 × 157 × 87.5 mm |
| Weight (without battery, memory card or body cap) | Approx. 1,220 g |
| Supplied Accessories (may differ by country or area) | Rechargeable Li-ion Battery EN-EL4a, Quick Charger MH-22, USB Cable UC-E4, Audio Video Cable EG-D2, Camera Strap AN-D3X, Body Cap BF-1A, Accessory Shoe Cover BS-2, Eyepiece DK-17, Battery Chamber Cover BL-4, USB Cable Clip, Software Suite CD-ROM |
