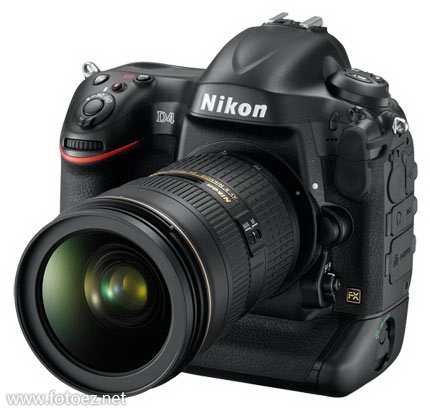

Nikon D4 DSLR Technical Specifications

Nikon D4, the new flagship DSLR offer a full-frame 16.2-megapixel full-format CMOS image sensor that will shoot full-resolution images at up to a 10 fps rate. A 91,000-Pixel RGB sensor and Advanced SRS, improved 51 point AF System. The ISO range from 100 to 102,400 which can be expanded to 50 to 204,800 for both movies and stills. The video section will record pixel-for-pixel Full-HD 1080p resolution with selections for 30p and 24p frame rates in this iteration, and 720p at up to 60p for slow-motion work.Nikon D4

Specifications of Nikon D4 DSLR:

Type
Type
Single-lens reflex digital camera
Lens mount
Nikon F mount (with AF coupling and AF contacts)
Effective pixels
Effective pixels
16.2 million
Image sensor
Image sensor
36.0 x 23.9 mm CMOS sensor (Nikon FX format)
Total pixels
16.6 million
Dust-reduction System
Image sensor cleaning, Image Dust Off reference data (requires optional Capture NX 2 software)
Storage
Image size (pixels)
FX (36 x 24) image area: 4,928 x 3,280 (L), 3,696 x 2,456 (M), 2,464 x 1,640 (S) 1.2x (30 x 20) image area: 4,096 x 2,720 (L), 3,072 x 2,040 (M), 2,048 x 1,360 (S) DX (24 x 16) image area: 3,200 x 2,128 (L), 2,400 x 1,592 (M), 1,600 x 1,064 (S) 5 : 4 (30 x 24) image area: 4,096 x 3,280 (L), 3,072 x 2,456 (M), 2,048 x 1,640 (S) FX-format photographs taken in movie live view (16:9): 4,928 x 2,768 (L), 3,696 x 2,072 (M), 2,464 x 1,384 (S) DX-format photographs taken in movie live view (16:9): 3,200 x 1,792 (L), 2,400 x 1,344 (M), 1,600 x 896 (S) FX-format photographs taken in movie live view (3:2): 4,928 x 3,280 (L), 3,696 x 2,456 (M), 2,464 x 1,640 (S) DX-format photographs taken in movie live view (3:2): 3,200 x 2,128 (L), 2,400 x 1,592 (M), 1,600 x 1,064 (S) Note: A DX-based format is used for photographs taken using the DX (24 x 16) 1.5x image area; an FX-based format is used for all other photographs.
File format
NEF (RAW): 12 or 14 bit, lossless compressed, compressed, or uncompressed TIFF (RGB) JPEG: JPEG-Baseline compliant with fine (approx. 1 : 4), normal (approx. 1 : 8), or basic (approx. 1 : 16) compression (Size priority); Optimal quality compression available NEF (RAW)+JPEG: Single photograph recorded in both NEF (RAW) and JPEG formats
Picture Control System
Can be selected from Standard, Neutral, Vivid, Monochrome, Portrait, Landscape; selected Picture Control can be modified; storage for custom Picture Controls
Media
XQD and Type I CompactFlash memory cards (UDMA compliant)
Dual card slots
Either card can be used for primary or backup storage or for separate storage of NEF (RAW) and JPEG images; pictures can be copied between cards.
File system
DCF (Design Rule for Camera File System) 2.0, DPOF (Digital Print Order Format), Exif (Exchangeable Image File Format for Digital Still Cameras) 2.3, PictBridge
Viewfinder
Viewfinder
Eye-level pentaprism single-lens reflex viewfinder
Frame coverage
FX (36 x 24): Approx. 100% horizontal and 100% vertical 1.2x (30 x 20): Approx. 97% horizontal and 97% vertical DX (24 x 16): Approx. 97% horizontal and 97% vertical 5:4 (30 x 24): Approx. 97% horizontal and 100% vertical
Magnification
Approx. 0.7 x (50 mm f/1.4 lens at infinity, -1.0 m-1)
Eyepoint
18 mm (-1.0 m-1; from center surface of viewfinder eyepiece lens)
Diopter adjustment
-3 - +1 m-1
Focusing screen
Type B BriteView Clear Matte Mark VIII screen with AF area brackets and framing grid
Reflex mirror
Quick return
Depth-of-field preview
When Pv button is pressed, lens aperture is stopped down to value selected by user (A and M modes) or by camera (P and S modes)
Lens aperture
Instant return, electronically controlled
Lens
Compatible lenses
Compatible with AF NIKKOR lenses, including type G and D lenses (some restrictions apply to PC Micro-NIKKOR lenses) and DX lenses (using DX 24 x 16 1.5x image area), AI-P NIKKOR lenses, and non-CPU AI lenses (exposure modes A and M only). IX NIKKOR lenses, lenses for the F3AF, and non-AI lenses can not be used. The electronic rangefinder can be used with lenses that have a maximum aperture of f/5.6 or faster (the electronic rangefinder supports the 11 focus points with lenses that have a maximum aperture of f/8 or faster).
Shutter
Type
Electronically-controlled vertical-travel focal-plane shutter
Speed
1/8000 - 30 s in steps of 1/3, 1/2, or 1 EV, bulb, X250
Flash sync speed
X=1/250 s; synchronizes with shutter at 1/250 s or slower
Release
Release mode
Single frame, Continuous low speed, Continuous high speed, Quiet shutter-release, Self-timer, Mirror up
Approximate frame advance rate
Up to 10 fps (CL) or 10-11 fps (CH)
Self-timer
2 s, 5 s, 10 s, 20 s; 1-9 exposures at intervals of 0.5, 1, 2, or 3 s
Exposure
Metering
TTL exposure metering using RGB sensor with approximately 91K (91,000) pixels
Metering method
Matrix: 3D color matrix metering III (type G and D lenses); color matrix metering III (other CPU lenses); color matrix metering available with non-CPU lenses if user provides lens data Center-weighted: Weight of 75% given to 12 mm circle in center of frame. Diameter of circle can be changed to 8, 15, or 20 mm, or weighting can be based on average of entire frame (non-CPU lenses use 12-mm circle or average of entire frame) Spot: Meters 4 mm circle (about 1.5% of frame) centered on selected focus point (on center focus point when non-CPU lens is used)
Range (ISO 100, f/1.4 lens, 20°C/68°F)
Matrix or center-weighted metering: -1 - +20 EV Spot metering: 2-20 EV
Exposure meter coupling
Combined CPU and AI
Exposure mode
Programmed auto with flexible program (P); shutter-priority auto (S); aperture-priority auto (A); manual (M)
Exposure compensation
-5 - +5 EV in increments of 1/3, 1/2, or 1 EV
Exposure bracketing
2-9 frames in steps of 1/3, 1/2, 2/3, or 1 EV
Flash bracketing
2-9 frames in steps of 1/3, 1/2, 2/3, or 1 EV
White balance bracketing
2-9 frames in steps of 1, 2, or 3
ADL bracketing
2 frames using selected value for one frame or 3-5 frames using preset values for all frames
Exposure lock
Luminosity locked at detected value with the center of the sub-selector
ISO sensitivity (Recommended Exposure Index)
ISO 100 - 12800 in steps of 1/3, 1/2, or 1 EV. Can also be set to approx. 0.3, 0.5, 0.7, or 1 EV (ISO 50 equivalent) below ISO 100 or to approx. 0.3, 0.5, 0.7, 1, 2, 3, or 4 EV (ISO 204800 equivalent) above ISO 12800; auto ISO sensitivity control available
Active D-Lighting
Can be selected from Auto, Extra high +2/+1, High, Normal, Low, or Off
Focus
Autofocus
Nikon Advanced Multi-CAM 3500FX autofocus sensor module with TTL phase detection, fine-tuning, and 51 focus points (including 15 cross-type sensors with f/8 supported by 11 sensors)
Detection range
-2 - +19 EV (ISO 100, 20°C/68°F)
Lens servo
Autofocus (AF): Single-servo autofocus (AF-S); continuous-servo autofocus (AF-C); predictive focus tracking automatically activated according to subject status Manual focus (M): Electronic rangefinder can be used
Focus point
Can be selected from 51 or 11 focus points
AF-area mode
Single-point AF, 9-, 21-, or 51- point dynamic-area AF, 3D-tracking, auto-area AF
Focus lock
Focus can be locked by pressing shutter-release button halfway (single-servo autofocus) or by pressing the center of the sub-selector
Flash
Flash control
TTL: i-TTL flash control using RGB sensor with approximately 91K (91,000) pixels is available with SB-910, SB-900, SB-800, SB-700, SB-600, or SB-400; i-TTL balanced fill-flash for digital SLR is used with matrix and center-weighting metering, standard i-TTL flash for digital SLR with spot metering
Flash mode
Front curtain sync, slow sync, rear-curtain sync, red-eye reduction, red-eye reduction with slow sync, slow rear-curtain sync, Auto FP High-Speed Sync supported
Flash compensation
-3 - +1 EV in increments of 1/3, 1/2, or 1 EV
Flash-ready indicator
Lights when optional flash unit is fully charged; flashes after flash is fired at full output
Accessory shoe
ISO 518 hot-shoe with sync and data contacts and safety lock
Nikon Creative Lighting System (CLS)
Advanced Wireless Lighting supported with SB-910, SB-900, SB-800, or SB-700 as a master flash, and SB-600 or SB-R200 as remotes, or SU-800 as commander; Auto FP High-Speed Sync and modeling illumination supported with all CLS-compatible flash units except SB-400; Flash Color Information Communication and FV lock supported with all CLS-compatible flash units
Sync terminal
ISO 519 sync terminal with locking thread
White balance
White balance
Auto (2 types), incandescent, fluorescent (7 types), direct sunlight, flash, cloudy, shade, preset manual (up to 4 values can be stored), choose color temperature (2500 K-10000 K), all with fine-tuning.
Live View
Modes
Live view photography (quiet or silent), movie live view
Lens servo
Autofocus (AF): Single-servo autofocus (AF-S); full-time servo autofocus (AF-F) Manual focus (M)
AF-area mode
Face-priority AF, wide-area AF, normal-area AF, subject-tracking AF
Autofocus
Contrast-detect AF anywhere in frame (camera selects focus point automatically when face-priority AF or subject-tracking AF is selected)
Movie
Metering
TTL exposure metering using main image sensor
Frame size (pixels) and frame rate
1,920 x 1,080; 30 p (progressive), 25 p, 24 p 1,920 x 1,080 crop; 30 p, 25 p, 24 p 1,280 x 720; 60 p, 50 p, 30 p, 25 p 640 x 424; 30p, 25p Actual frame rates for 60 p, 50 p, 30 p, 25 p, and 24 p are 59.94, 50, 29.97, 25, and 23.976 fps respectively; all options support both high and normal image quality
File format
MOV
Video compression
H.264/MPEG-4 Advanced Video Coding
Audio recording format
Linear PCM
Audio recording device
Built-in monaural or external stereo microphone; sensitivity adjustable
ISO sensitivity
Automatically adjusted in the range ISO 200-12800 or ISO 200-Hi 4
Other options
Index marking, time-lapse photography
Monitor
Monitor
8-cm/3.2-in., approx. 921k-dot (VGA) TFT LCD with 170° viewing angle, approximately 100% frame coverage, and automatic monitor brightness control using ambient brightness sensor
Playback
Playback
Full-frame and thumbnail (4, 9, or 72 images) playback with playback zoom, movie playback, photo and/or movie slide shows, histogram display, highlights, photo information, GPS data display, auto image rotation, voice memo input and playback, and IPTC information embedding and display
Interface
USB
Hi-Speed USB
HDMI output
Type C mini-pin HDMI connector; can be used simultaneously with camera monitor
Audio input
Stereo mini-pin jack (3.5mm diameter; plug-in power supported)
Audio output
Stereo mini-pin jack (3.5mm diameter)
Ten-pin remote terminal
Can be used to connect optional remote control, GP-1 GPS unit, or GPS device compliant with NMEA0183 version 2.01 or 3.01 (requires optional MC-35 GPS adapter cord and cable with D-sub 9-pin connector)
Ethernet
RJ-45 connector
Peripheral connector
For WT-5
Supported languages
Supported languages
Arabic, Chinese (Simplified and Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Swedish, Thai, Turkish, Ukrainian
Power source
Battery
One rechargeable Li-ion EN-EL18 battery
AC adapter
EH-6b AC adapter; requires EP-6 power connector (available separately)
Tripod socket
Tripod socket
1/4 in. (ISO 1222)
Dimensions/weight
Dimensions (W x H x D)
Approx. 160 x 156.5 x 90.5 mm (6.3 x 6.2 x 3.6 in.)
Weight
Approx. 1340 g (2 lb. 15.3 oz.) with battery and XQD memory card but without body cap and accessory shoe cover; approx. 1180 g/2 lb. 9.6 oz. (camera body only)
Operating environment
Temperature
0-40°C (+32-104°F)
Humidity
Less than 85% (no condensation)
Supplied accessories
Supplied accessories
BF-1B body cap, BS-2 accessory shoe cover, EN-EL18 rechargeable Li-ion battery with terminal cover, MH-26 battery charger with power cable and two contact protectors, UC-E15 USB cable, USB cable clip, UF-2 mic stereo input jack for ME-1 stereo microphone, AN-DC7 strap, ViewNX 2 installer CD
